Tomsic

The Tomsic company is a private owned company and is currently managed by the second generation of the Tomsic family who established an engineering factory in the area in 1956.

Initially, manufacturing consisted of electronic solutions, systems, boards and services for a famous local textile machine maker (VOUK – Specialist in Drawframe).

Until 1997 Tomsic company grew a lot with acquisition of huge textile experience, especially in drawframe autolevelling, slivers quality monitoring and laboratory quality monitoring process.

However, since 1997 Tomsic company finished the collaboration with VOUK (local machine maker) and entered into the world market of manufacturing the new textile products.

Thanks to a strong business philosophy Tomsic company entered the new markets without any problems and continues to grow. Furthermore, in 2003 the new building with triplicate production and offices area was inaugurated.

Products

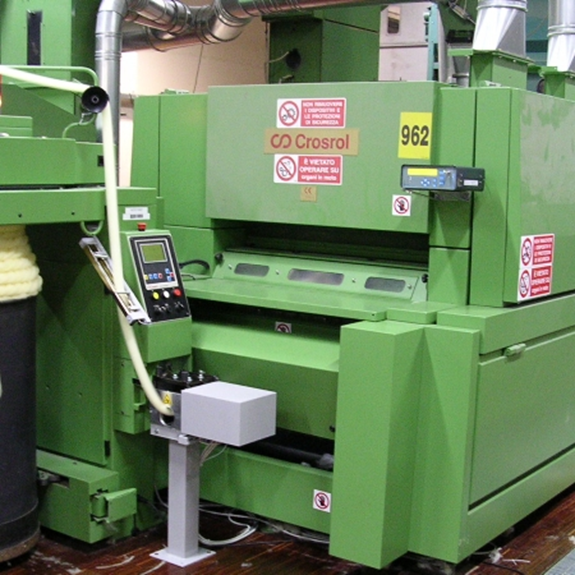

Card Autoleveller

Product Description

The Tomsic card autoleveller is the unique real short term card autoleveller. The product is designed for card fabricants and for old card upgrades. The product includes mechanical, electric and electronic kit!

Features Reduce

70% the CV on 1 meter respect to a card without autoleveller Our patented technology gives you the opportunity to improve 70% the count variation on 1 meter length on your existing card!

Built-in THICK PLACES

monitoring The THICK PLACES monitoring is a well proved function and technology and is actually used by many major spinning mills. This function provides all necessary settings for an accurate

Life-time guarantee on the measuring sensor

The strong construction sensor (measuring trumpet) can be considered indestructible. The Tomsic Card Autoleveller is installed on 37 different card models: Rieter, Truetzschler, Marzoli, Crosroll.

Detection Percentage

Options

Features

Accuracy

New autolevelling concept with d-T&G (patented) system with excellent quality results. Together with 100% digital electronic draft are included a sophisticated output sliver monitoring and production data.

Robustness

The strong construction sensor (measuring trumpet) can be considered indestructible. The d-T&G scanning rollers are built with a special material for resist to any type of fiber.

Advantages

d-T&G, 100% digital, with one-touch adjustment procedure of DLS sensor, without special tools and technicians (patented function).
Constant correction length, independent from main speed.
Autolevelling range up to +/-30%.
Electronic draft directly set from keyboard.
Output sliver quality monitoring.
Spare parts saving.

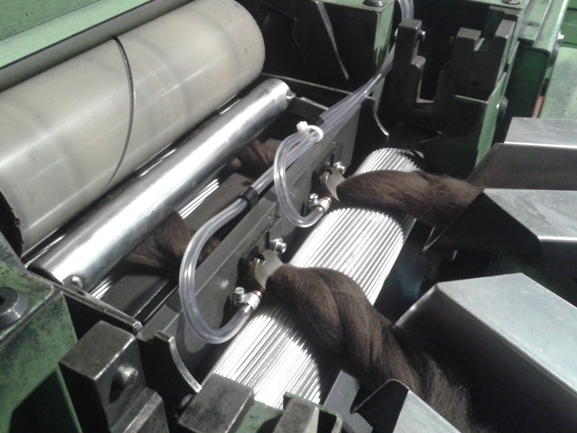

Sliver Quality Monitoring

Product Description

The TMS25-QM2, developed by TOMSIC, is a unique device, capable of an accurate monitoring of sliver produced by a card, drawframe and comber.

Features Robustness

Life-time guarantee on the measuring sensor!

Measured Parameters

Warning and stop limits

Options

TMS25-Link connection for long data storage and analysis including Normal and Inert test
Production monitoring on board
*Thick Places Monitoring
The THICK PLACES monitoring is a well proved function and technology and is actually used by many major spinning mills. This function provides all necessary settings for an accurate detection of thick places such as:

Detection Percentage

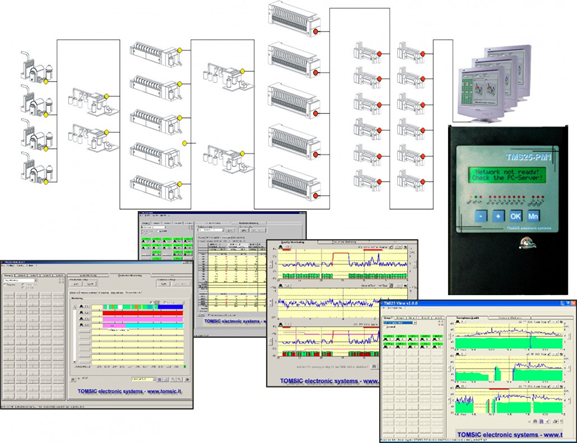

Online Production & Quality Monitoring

Product Description

The TMS25-Link, developed by TOMSIC electronic systems, is maybe the sole device, capable to collect data not only ON-LINE, but also REAL-TIME! The system in fact reproduce data and graphs in real time!

Features

Robustness
Quality monitoring of Count variation, CV%, CV1m, CV3m, Thick places, Normal test and Inert test.
Production monitoring divided per production lots.
Extremely long period storage (up to 6 years with steps of 5 seconds).
Really simple use.
Cost effective.
How is phisically the TMS25-LINK System?
One PC, from now called server, is phisically connected to all factory machines via cable. For server machine, you can use a very simple PC with minimum requirements. On the server can be already seen production and quality not only ON-LINE, but also REAL-TIME! So, practically you don’t need anythink more.
However, without any additional cost, the server, can be connected with eventual pre-existing factory LAN-Network (Ethernet 10/100) as any other PC on the factory LAN. In this way, any factory PC, from now called client, and any PC located on the Internet can see production and quality not only ON-LINE, but also REAL-TIME! The LAN connection permit to see different situations on different PCs. Basically, every client can fully pesonalize its local software in extremely intuitive way.

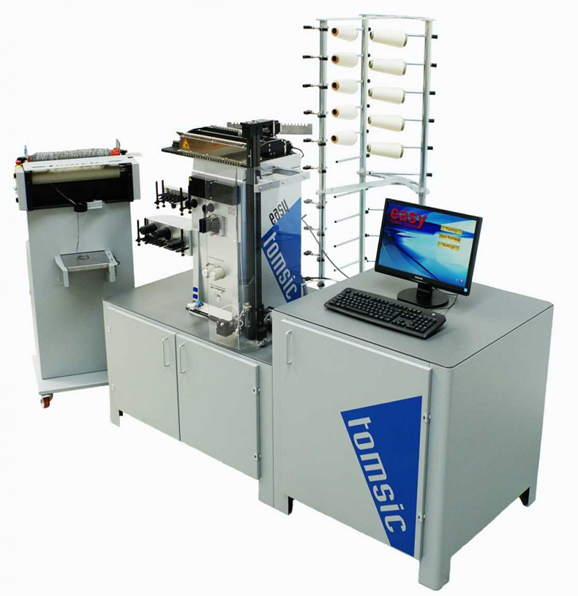

EASY – Evenness Tester

Compatibility

Graphical and numerical results perfectly matching world standard. Worldwide approved and used by the biggest textile players like Ermenegildo Zegna, Botto Giuseppe, Avante.

Simplicity

Worldwide recognized as the most simple and user friendly machine/software! It’s simply EAS

Recognized

as the best in the market. Available data of last 25 years. Free connection to servers and mainframes. Free export to any Windows application like Excel, Word.

Software and Hardware longevity

Based on Microsoft .Net technology for total compatibility with future Windows at zero after-sell-service cost! The electronic and mechanical parts are 100% made by Tomsic. Each component and innovation is designed, planned, created and tested inside Tomsic factory thanks to the experience of tens of years of after sales service of laboratory equipments and spinning machines around the world.

Measured parameters

All well-known parameters.

Options

Hairiness, External Sensor, AutoChanger, Creel, AutoFeeder, Table, Balance, UPS, AutoCount.

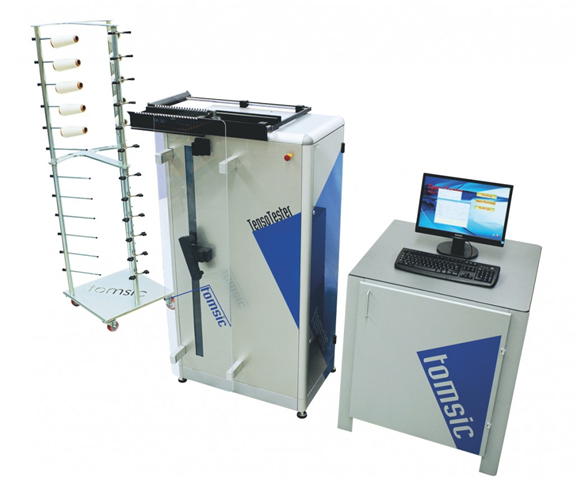

TensoTester3 – Strength Tester

Product Description

Full automatic strength tester for yarns. Based on Constant Rate of Elongation (C.R.E.) measure method. Speed up to 5000 mm/min. Test length up to 500 mm. Load cell: 6, 10, 20, 50, 100 kg. Autochanger with 24 positions. On-board turbo blower system.

Compatibility

Graphical and numerical results perfectly matching world standard. Worldwide approved and used by the biggest textile players.

Simplicity

Worldwide recognized as the most simple and user friendly machine/software! Simply and fast load cell change.

Database Recognized

as the best in the market. Available data of last 25 years. Free connection to servers and mainframes. Free export to any Windows application like Excel, Word

Software and Hardware longevity

Based on Microsoft .Net technology for total compatibility with future Windows at zero after-sell-service cost! The electronic and mechanical parts are 100% made by Tomsic. Each component and innovation is designed, planned, created and tested inside Tomsic factory thanks to the experience of tens of years of after sales service of laboratory equipments and spinning machines around the world.

Measured parameters

All well-known parameters.

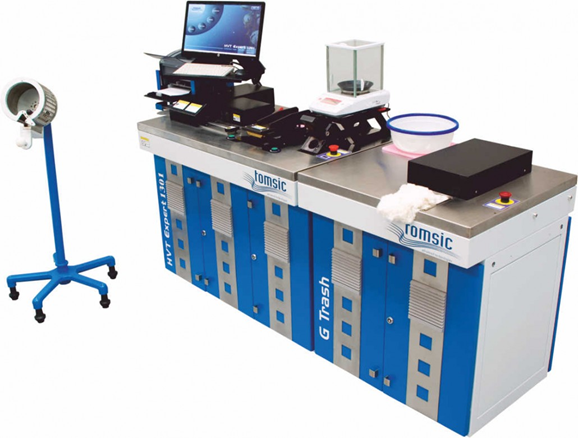

HVT – High Volume Tester

HVT Expert 1401

Measuring the important fiber properties like Length & Strength with automated sampling, Micronaire, Maturity, Moisture, Color & Trash. Calibration in both ICC & HVI mode by USDA or any other international calibration cotton. Parallel as well as simultaneous operations ensures faster testing. Flexible report options like date wise, lot wise, cotton type wise as well as consolidated reports.

AutoSampler

To prepare uniform cotton beards for testing the Length & Strength in High Volume Tester. Automated fiber comb sampling with better sampling repeatability avoids operator influence. Intelligent pressure mechanism (Pressure depends on the linear density of the sample) for accurate beard collection irrespective of sample size. Self cleaning of tested comb sample. Fast sampling minimum 200 Combs /hour.

Trash Module – SmartTrash

Advanced trash separation in 10 / 50 grams by buoyancy separation technique by the use of air currents. Trash measurement in terms of mass and in percentage. Precise and rapid measurement with single specimen feed. Automatic trash weighment for high mass measurement accuracy.

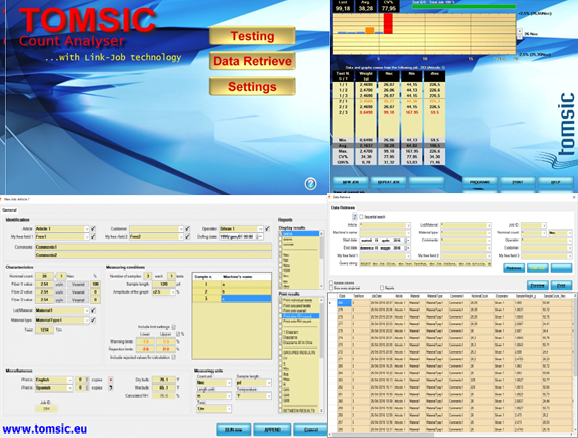

TMS45 – Count Analyser

Product Description

Laboratory equipment designed for the measurement of yarn, roving and sliver count.

AutoSampler

Main software: Multilanguage and most user friendly in the market! The PC desktop is NOT locked and is freely accessible!
Software technology: Microsoft .NET for long support and ready for all future operative systems.
Report Printing: Multilanguage and JOB based. Possible to select a simultaneous printing in two different languages.
Data storage: At least 20 years data storage on open SQL database for Count Analyser and free retrieve of the stored data also via other software (for example: Excel).
PC-Client (data retrieve): Lan/remote access software to access database for: print out reports, trend analysis.
Measuring Units: Possible to change measuring units like Nec, Nel, New, Nm, tex, Ktex, gr/yd, Denier.
Software Graphs: Avg., CV% graphs also during the test.
Software Data View: Min., Avg., Max, CV% Q95% data. Possible to visualize up to 3 measuring units at the same time.
Link-Job Technology: Count Analyser software permits to associate a count test with EASY and TensoTester3 job. (With LAN connection between PC). Very simple and useful, errors avoid system. Time save technology.

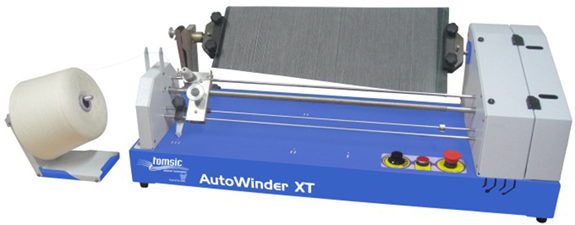

Autowinder

Product Description - Application

Precise preparation for accurate assessment of imperfections to grade the yarn against photo graphic comparison standards.

Features

Choices of wide range of rectangular and tapered winding black boards.
Operating under stepped pulley mechanism with traversing motion ensures uniform winding in different pitch as per standards.
Automatic wrapping in both left & right directions with pre-settable stopper el iminates manual disturbances.
Model available upto accommodate 30 inches board also.

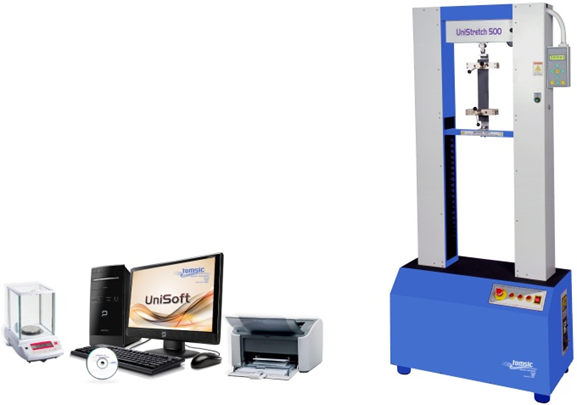

Unistretch 500 - Strenght Tester

Product Description - Application

To determine various physical properties of Threads, Fabrics & accessory for Garments.

Features

Capacity: – Force : 50 kgf / 100 lbf / 500 Nf (Accuracy : ± 0.5%)
250 kgf / 500 lbf / 2500 Nf (Accuracy : ± 0.5%)
500 kgf / 1000 lbf / 5000 Nf (Accuracy : ± 0.5%)
Jaw Separation : 0 to 600mm.
Traverse speed : 20 to 500mm per minute.
Constant rate of extension (CRE) principle.
Selectable force unit : Kilogram / Pound / Newton.
Selectable elongation unit : mm / inch / percentage.
Rugged type and ergonomically designed for extended life cycle.
State-of-art microcomputer controlled technology facilitates the following: –
Standalone testing without computer system.
User-friendly menu driven operating system.
Parameter setting flexibility through navigation keyboard.
Separate calibration program makes quick and reliable calibration.
Specially made jaws/grips suitable for standard test methods.
Computer connectivity and special software facilitates statistical and graphical reports.

Software package consist of :

Strength Analysis : Auto selection of strength unit in pounds / kilograms / Newtons
Common Features : Auto and Manual entry modes.
Statistical outputs : Mean, RH corrected, SD, CV%, Q95±, Min. & Max. Value.
Graphical outputs : FE curve and Trend chart.
Long-term storage format.
NOTE: Latest PC pre-loaded with Windows Xp with minimum 2 serial ports & Branded Printer ( Should be arranged by Buyer)

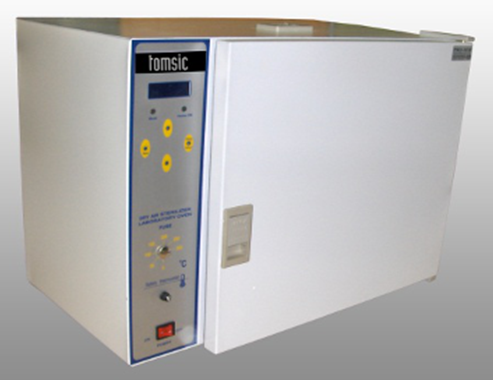

Laboratory Oven

Product Description

It is used for drying and fixation after dying and washing the fabric samples.

Features

To fix the fabric samples, there are models with pins and adjustable frames.

The drying operation can be done at the desired time and temperature. The maximum temperature is 250 oC. 4 stainless steel hanger shelves of 600 mm x 450 mm are also included. The available inner volume of the device is 324 liters.
